Laboratory #1 - Experimental modeling: model building from experimental data - Prof. M. Taragna

Parametric estimation of position transducer models using the classical (or statistical) approach

Contents

Introduction

The program code may be splitted in sections using the characters "%%". Each section can run separately with the command "Run Section" (in the Editor toolbar, just to the right of the "Run" button). You can do the same thing by highlighting the code you want to run and by using the button function 9 (F9). This way, you can run only the desired section of your code, saving your time. This script can be considered as a reference example.

clear all, close all, clc

Procedure

  1. Load the file sensor.mat containing the position/voltage data
  2. Plot the voltage measurements versus the position measurements
  3. Estimate the parameters of the linear approximation using least squares
  4. Plot the estimated approximation versus the experimental data
  5. Evaluate the estimate uncertaity using the prior information only
  6. Plot these confidence intervals versus the estimated approximation
  7. Evaluate the estimate uncertaity using the experimental data only
  8. Plot these confidence intervals versus the estimated approximation
  9. Estimate the parameters of polynomial approximations using least squares
  10. Plot the estimated approximations versus the experimental data

Problem setup

% Step 1: load of data

load sensor
% z  = position measured in meters, without position offset
% Vz = voltage measured in volts

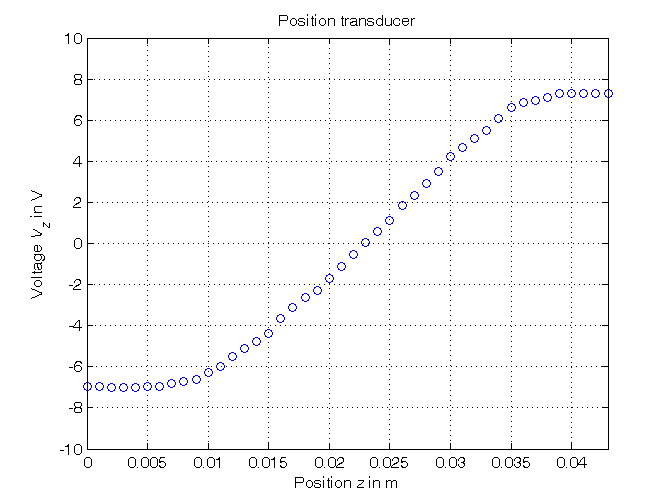

% Step 2: plot of data

figure, plot(z,Vz,'o'),
axis([min(z),max(z),-10,10]), grid, title('Position transducer'),
xlabel('Position{\it z} in m'), ylabel('Voltage{\it V_z} in V')

Parametric estimation of a linear model (w.r.t. data) using least squares

% Step3: computation of the parameter estimate

% definition of the linearity interval of the characteristic
i1=11; % z(11) = 0.01
i2=36; % z(36) = 0.035
z_lin=z(i1:i2);
Vz_lin=Vz(i1:i2);
N_lin=length(z_lin);

% parameter estimation by means of least squares algorithm
Phi=[Vz_lin, ones(N_lin,1)];
p=Phi\z_lin; % Form #1: using the "\" operator (more realiable)
Kt=1/p(1)
Vo=-p(2)/p(1)

p_=inv(Phi'*Phi)*Phi'*z_lin; % Form #2: using the pseudoinverse matrix
Kt_=1/p_(1)
Vo_=-p_(2)/p_(1)

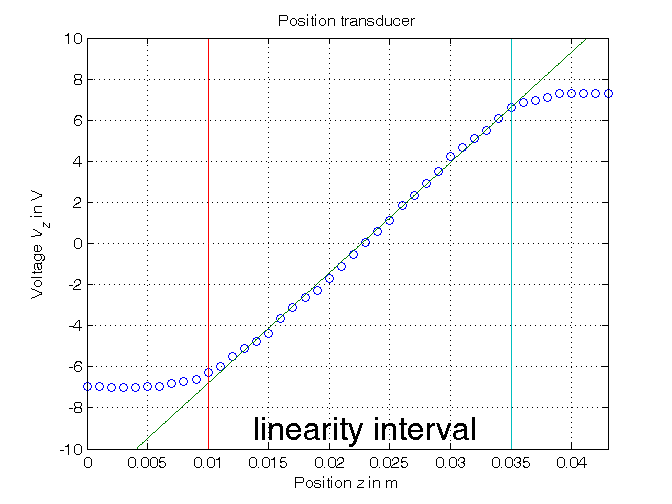

% Step 4: graphical comparison of the results

Vz0=linspace(-10,10,1000);
z_hat=p(1)*Vz0+p(2);
figure, plot(z,Vz,'o', z_hat,Vz0,'-', ...
             z_lin(1)*[1,1],[-10,10],'-', z_lin(end)*[1,1],[-10,10],'-'),
axis([min(z),max(z),-10,10]), grid, title('Position transducer'),
xlabel('Position{\it z} in m'), ylabel('Voltage{\it V_z} in V'),
text(0.013,-9,'\fontsize{20} linearity interval')

Kt =
  537.0036
Vo =
  -12.1779
Kt_ =
  537.0036
Vo_ =
  -12.1779

Computation of the parameter confidence intervals (noise variance derived from priors)

% Step 5: computation of the confidence intervals

% Definition of the x% confidence intervals:
% x=95.4 => k=2 ("2 sigma"); x=99.7 => k=3 ("3 sigma")
k_e=2; k_p=2;
noise_max=5e-4;

sigma_e=noise_max/k_e

Sigma_e=sigma_e^2*eye(N_lin);
Sigma_p=inv(Phi'*inv(Sigma_e)*Phi);
sigma_p=sqrt(diag(Sigma_p));
delta_p=k_p*sigma_p;
p_min=p-delta_p;
p_max=p+delta_p;
Kt_min=1/p_max(1)
Kt_max=1/p_min(1)
Vo_min=-p_max(2)/p_min(1)
Vo_max=-p_min(2)/p_max(1)

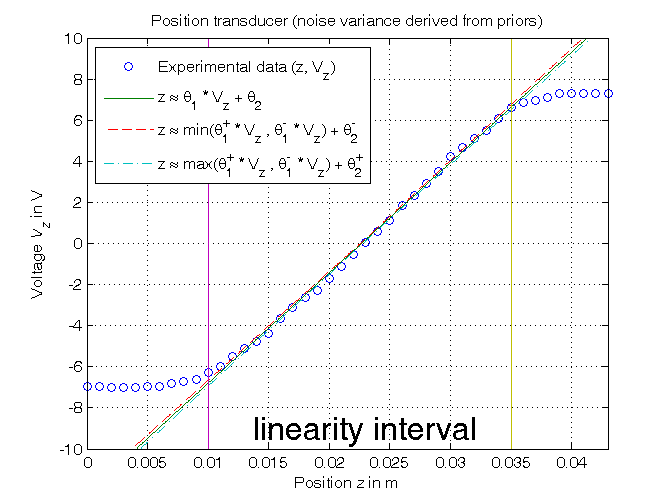

% Step 6: graphical comparison of the results

z_min=min([p_max(1)*Vz0; p_min(1)*Vz0])+p_min(2);
z_max=max([p_max(1)*Vz0; p_min(1)*Vz0])+p_max(2);

figure, plot(z,Vz,'o', z_hat,Vz0,'-', ...
             z_min,Vz0,'--', z_max,Vz0,'-.', ...
             z_lin(1)*[1,1],[-10,10],'-',z_lin(end)*[1,1],[-10,10],'-')
axis([min(z),max(z),-10,10]), grid,
title('Position transducer (noise variance derived from priors)'),
xlabel('Position{\it z} in m'), ylabel('Voltage{\it V_z} in V'),
legend('Experimental data (z, V_z)_{ }^{  }', ...
       'z \approx \theta_{1} * V_{z} + \theta_2', ...
       'z \approx min(\theta_{1}^{+} * V_{z} , \theta_{1}^{-} * V_{z}) + \theta_{2}^{-}', ...
       'z \approx max(\theta_{1}^{+} * V_{z} , \theta_{1}^{-} * V_{z}) + \theta_{2}^{+}', 2),
text(0.013,-9,'\fontsize{20} linearity interval')

sigma_e =
   2.5000e-04
Kt_min =
  530.0654
Kt_max =
  544.1257
Vo_min =
  -12.3928
Vo_max =
  -11.9685


Computation of the parameter confidence intervals (noise variance estimated from data)

% Step 7: computation of the confidence intervals

sigma_e_ml=sqrt((z_lin-Phi*p)'*(z_lin-Phi*p)/N_lin)

Sigma_e=sigma_e_ml^2*eye(N_lin);
Sigma_p=inv(Phi'*inv(Sigma_e)*Phi);
sigma_p=sqrt(diag(Sigma_p));
delta_p=k_p*sigma_p;
p_min=p-delta_p;
p_max=p+delta_p;
Kt_min=1/p_max(1)
Kt_max=1/p_min(1)
Vo_min=-p_max(2)/p_min(1)
Vo_max=-p_min(2)/p_max(1)

% Step 8: graphical comparison of the results

z_min=min([p_max(1)*Vz0; p_min(1)*Vz0])+p_min(2);
z_max=max([p_max(1)*Vz0; p_min(1)*Vz0])+p_max(2);

figure, plot(z,Vz,'o', z_hat,Vz0,'-', ...
             z_min,Vz0,'--', z_max,Vz0,'-.', ...
             z_lin(1)*[1,1],[-10,10],'-',z_lin(end)*[1,1],[-10,10],'-')
axis([min(z),max(z),-10,10]), grid,
title('Position transducer (noise variance estimated from data)'),
xlabel('Position{\it z} in m'), ylabel('Voltage{\it V_z} in V'),
legend('Experimental data (z, V_z)_{ }^{  }', ...
       'z \approx \theta_{1} * V_{z} + \theta_2', ...
       'z \approx min(\theta_{1}^{+} * V_{z} , \theta_{1}^{-} * V_{z}) + \theta_{2}^{-}', ...
       'z \approx max(\theta_{1}^{+} * V_{z} , \theta_{1}^{-} * V_{z}) + \theta_{2}^{+}', 2),
text(0.013,-9,'\fontsize{20} linearity interval')

sigma_e_ml =
   3.5618e-04
Kt_min =
  527.1726
Kt_max =
  547.2082
Vo_min =
  -12.4858
Vo_max =
  -11.8813

Parametric estimation of 3rd order polynomial models (w.r.t. data) using least squares

% Step 9: computation of the parameter estimate

% a) assuming Vz as independent variable, z as variable dependent on Vz =>
%    z = theta(1)*Vz^3 + theta(2)*Vz^2 + theta(3)*Vz + theta(4)
Phi=[Vz.^3, Vz.^2, Vz, Vz.^0];
format shortE, format compact
p3a=Phi\z                      % Form #1: using the "\" operator
z_pol=polyval(p3a,Vz0);

p3a_=polyfit(Vz,z,3)           % Form #2: using the "polyfit" function
format short, format compact

% b) assuming z as independent variable, Vz as variable dependent on z =>
%    Vz = theta(1)*z^3 + theta(2)*z^2 + theta(3)*z + theta(4)
Phi=[z.^3, z.^2, z, z.^0];
p3b=Phi\Vz                     % Form #1: using the "\" operator
z0=linspace(min(z),max(z),1000);
Vz_pol=polyval(p3b,z0);

p3b_=polyfit(z,Vz,3)           % Form #2: using the "polyfit" function

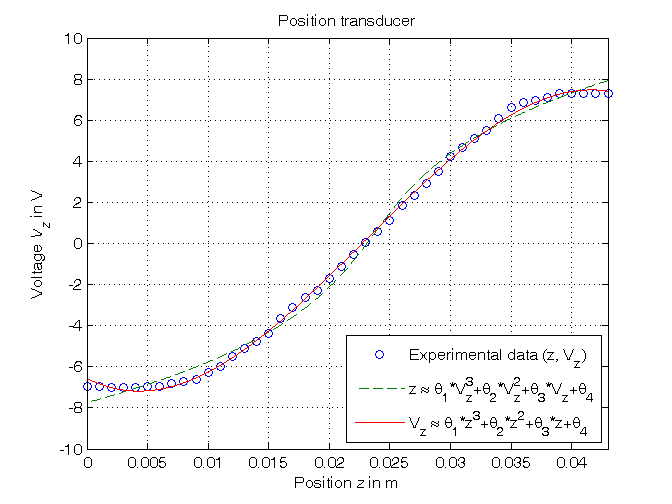

% Step 10: graphical comparison of the results

figure, plot(z,Vz,'o',z_pol,Vz0,'--',z0,Vz_pol,'-'),
axis([min(z),max(z),-10,10]), grid, title('Position transducer'),
xlabel('Position{\it z} in m'), ylabel('Voltage{\it V_z} in V'),
legend('Experimental data (z, V_z)_{ }^{  }', ...
       'z \approx \theta_1*V_z^3+\theta_2*V_z^2+\theta_3*V_z+\theta_4', ...
       'V_z \approx \theta_1*z^3+\theta_2*z^2+\theta_3*z+\theta_4',4)

p3a =
   2.4097e-05
  -3.4590e-05
   1.2715e-03
   2.3100e-02
p3a_ =
   2.4097e-05  -3.4590e-05   1.2715e-03   2.3100e-02
p3b =
   1.0e+05 *
   -5.6269
    0.3877
   -0.0030
   -0.0001
p3b_ =
   1.0e+05 *
   -5.6269    0.3877   -0.0030   -0.0001


Published with MATLAB® R2014a
